PCIe 6.0: A Simple Guide to the Future of High-Speed Connectivity

Modern applications like AI, machine learning, cloud computing, and advanced storage systems need extremely fast data movement. This is where PCI Express (PCIe) plays a key role. With each generation doubling speed, PCIe has become the standard for high-speed data transfer.

The latest version, PCIe 6.0 (PCIe Gen6), brings major improvements in speed, bandwidth, efficiency, and reliability.

What Makes PCIe 6.0 Important?

PCIe 6.0 doubles the performance of PCIe 5.0, offering 64 GT/s per lane and up to 256 GB/s of bandwidth in an x16 configuration. This huge speed increase supports next-generation workloads such as AI/ML models, HPC systems, cloud GPUs, and high-speed networking devices.

Key PCIe 6.0 Features (Simplified)

1. PAM4 Signaling

PCIe 6.0 uses PAM4 signaling, which sends two bits per symbol instead of one. This helps achieve higher data rates without increasing clock speed.

2. Forward Error Correction (FEC)

Because PAM4 can introduce more errors, PCIe 6.0 includes FEC + CRC to keep data reliable while adding less than 2 ns of latency. This ensures stable, high-speed data transfer.

3. FLIT Mode (Fixed Packet Size)

PCIe 6.0 introduces FLIT (Flow Control Unit), which uses fixed-size packets. This improves bandwidth efficiency and reduces overhead compared to earlier PCIe versions.

4. Better Encoding

Unlike previous generations that used 8b/10b or 128b/130b encoding, PCIe 6.0 shifts to 1b/1b encoding, meaning no encoding overhead except for FEC/CRC. This helps achieve higher usable bandwidth.

PCIe 6.0 vs. PCIe 5.0 (Quick Comparison)

These improvements make PCIe 6.0 ideal for high-bandwidth applications, especially where low latency and large datasets are involved.

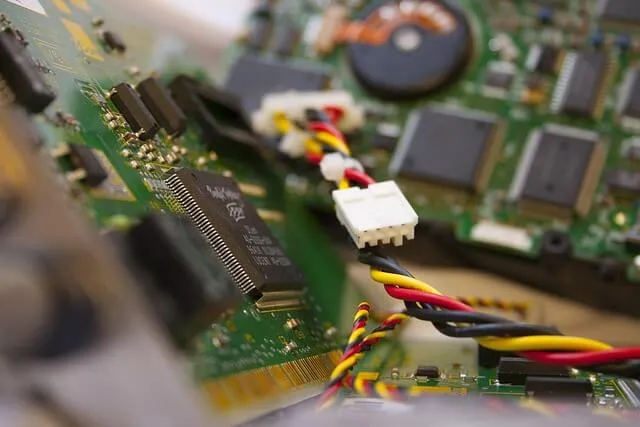

Image Source: Pixabay

Where PCIe 6.0 Will Be Used

Because of its speed and efficiency, PCIe Gen6 will first appear in:

• AI/ML accelerators
• Data center servers
• High-performance storage
• Cloud GPUs
• Networking and switching equipment

As the ecosystem matures, more industries—automotive, industrial computing, and edge devices—will adopt PCIe 6.0.

Why PCIe 6.0 Is a Game-Changer

• Faster data transfer for next-gen workloads
• Higher bandwidth for AI and HPC systems
• Improved encoding and packet efficiency
• Better reliability with advanced FEC
• Full backward compatibility with older PCIe versions

PCIe 6.0 sets a new standard for high-speed interconnects, supporting the rapid growth of data-driven applications.
